Tuba

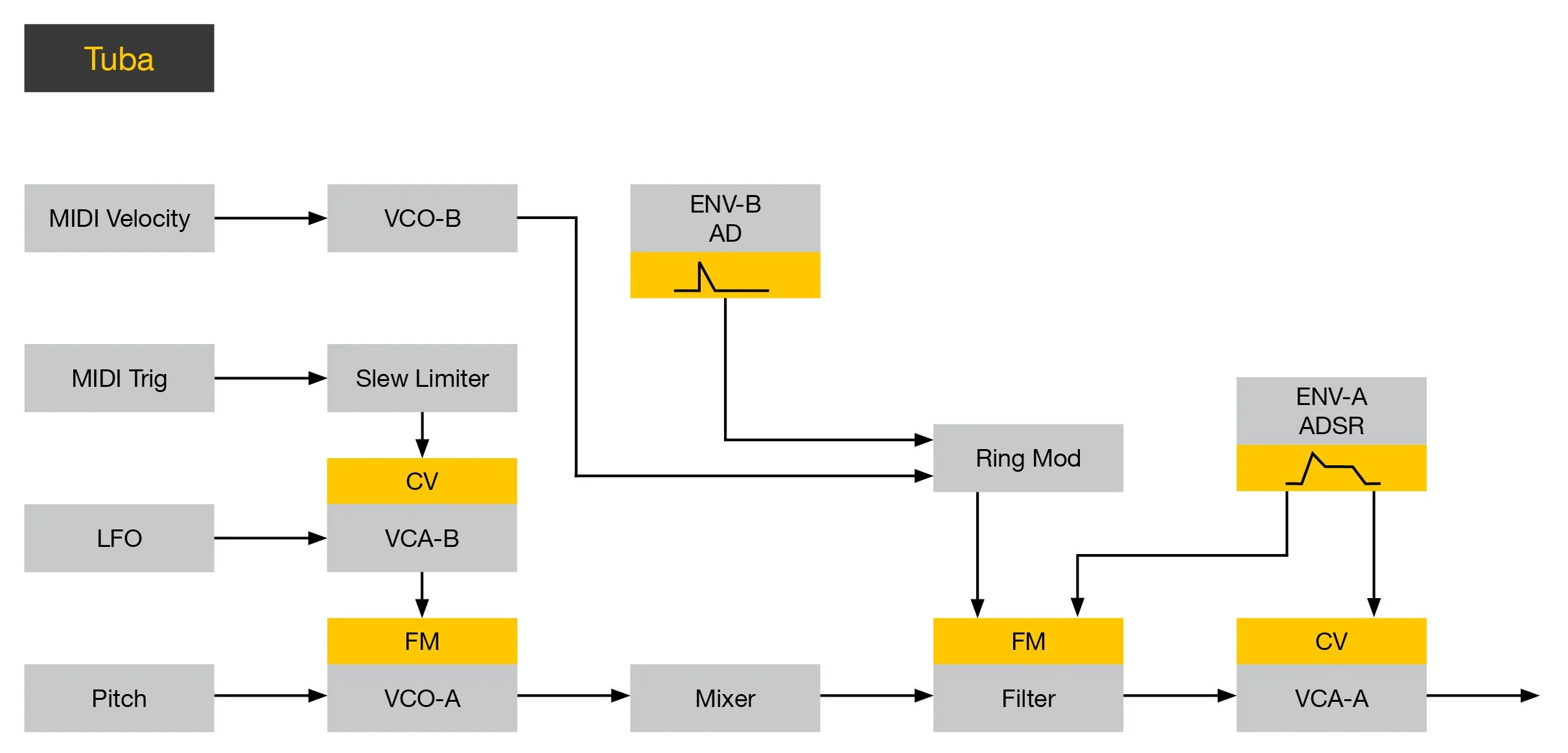

This has the same patching as the Trumpet patch, but with different settings.
1: Use a sawtooth wave.
2: ENV-A is controlling both the filter cutoff and amp level. Patch ENV-A to filter FM1.
3: Amp Envelope Attack: Brass sounds reach full volume quickly but with a slight buildup. Give ENV-A a fast but not instantaneous attack. This mirrors the time it takes for the player’s breath and lip vibrations to stabilize.
4: Amp Envelope Release: Use a short release time. Brass instruments cease producing sound abruptly after the player stops blowing.
5: Brass instruments take a moment for the pitch to stabilize, and are initially raspy. Use a fast burst of rapid modulation to simulate this:
Patch the MIDI trigger to the slew limiter to use it as a decay only envelope. Set the slew time just enough to make the initial attack inharmonic.
Patch the slew limiter to VCA-B CV.
Patch the LFO to VCA-B in.
Patch VCA-B to VCO-A FM1.
Keep the amount of FM on VCO-A very subtle. Try it with positive and negative amounts of FM.
6: Use a low filter frequency. Brass instruments start low and increase frequency as the note stabilizes.
7: Set the filter to LP4 for a softer more mellow sound.
8: Set keyboard tracking to 50%. This mirrors the nonlinear increase in brightness on real brass instruments.
9: Use VCO-B to add vibrato that comes in only on sustained notes:
Patch MIDI velocity to VCO-B pitch.
Set VCO-B to LFO range.
ENV-B is set to have a slow attack that will only be high on sustained notes.
Use the ring mod as a VCA: Patch ENV-B to the ring mod input on the left (replacing the VCO-A normalization). VCO-B is already normaled to the ring mod’s right input. ENV-B will control the shape of VCO-B.
Patch the ring mod to filter FM3.
Keep the amount low.
Try out different VCO-B speeds.
